Perceptron Analysis

This analysis explores the fundamental concepts of neural networks through the implementation of perceptrons. We examine three key implementations: Simple Perceptron, AND Operator Perceptron, and Multi-layer Perceptron.

Learning Outcomes

• Understand the fundamental architecture of neural networks
• Implement different types of perceptrons
• Analyze the limitations of single-layer perceptrons
• Explore the power of multi-layer networks
• Apply backpropagation for weight updates

Task A: Simple Perceptron Implementation

# Import required libraries
import numpy as np
import matplotlib.pyplot as plt

# Define activation function (sigmoid)
def sigmoid(x):
    return 1 / (1 + np.exp(-x))

# Initialize weights and bias
weights = np.random.randn(2)
bias = np.random.randn(1)

# Training loop
for epoch in range(epochs):
    # Forward pass
    output = sigmoid(np.dot(inputs, weights) + bias)

    # Backward pass
    error = target - output
    weights += learning_rate * np.dot(inputs.T, error)
    bias += learning_rate * np.sum(error)

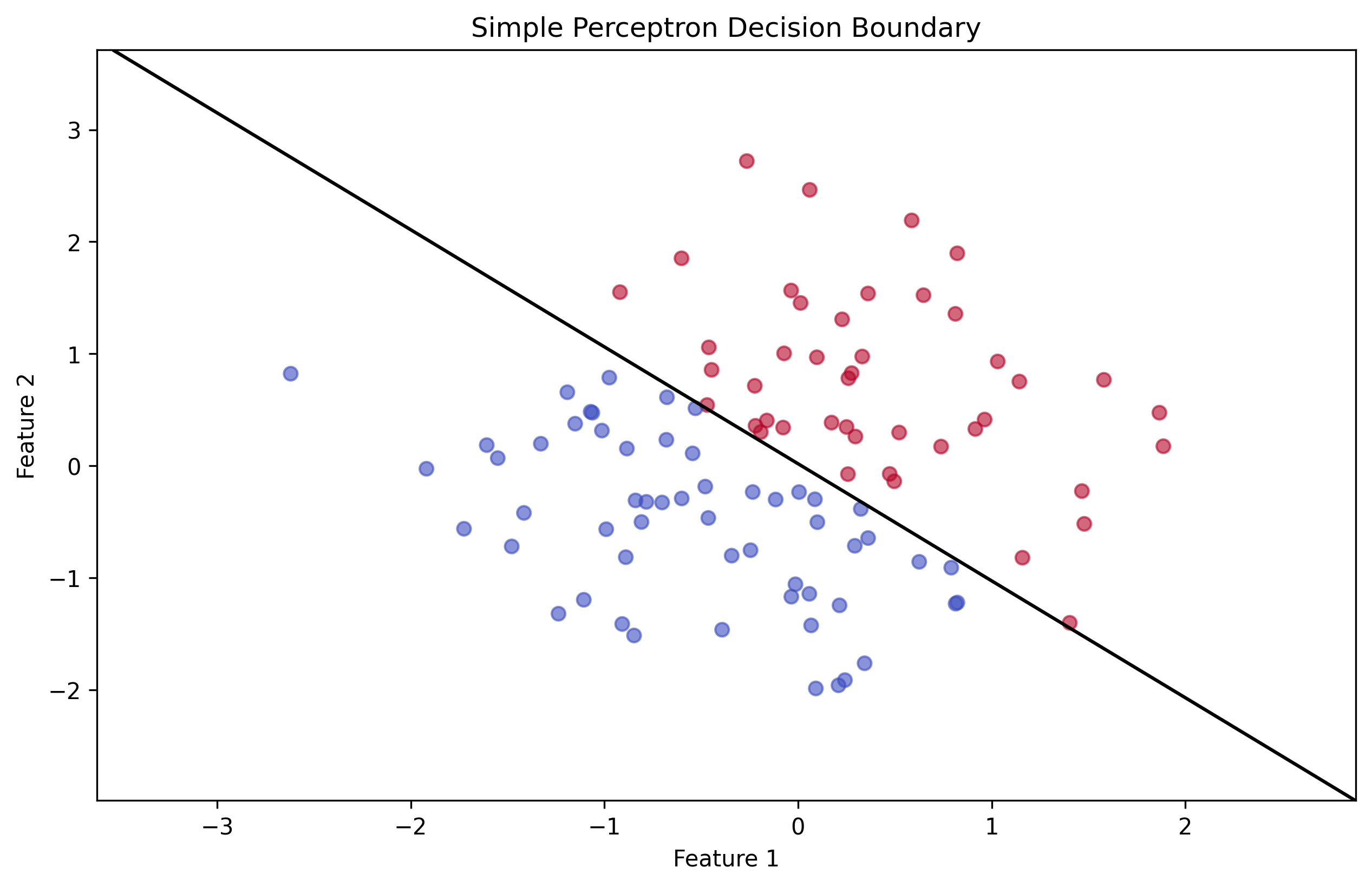

Simple Perceptron Results

Task B: AND Operator Perceptron

# Define AND gate inputs and outputs
inputs = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
targets = np.array([[0], [0], [0], [1]])

# Initialize weights and bias
weights = np.random.randn(2, 1)
bias = np.random.randn(1)

# Training loop
for epoch in range(epochs):
    # Forward pass
    output = sigmoid(np.dot(inputs, weights) + bias)

    # Backward pass
    error = targets - output
    weights += learning_rate * np.dot(inputs.T, error)
    bias += learning_rate * np.sum(error)

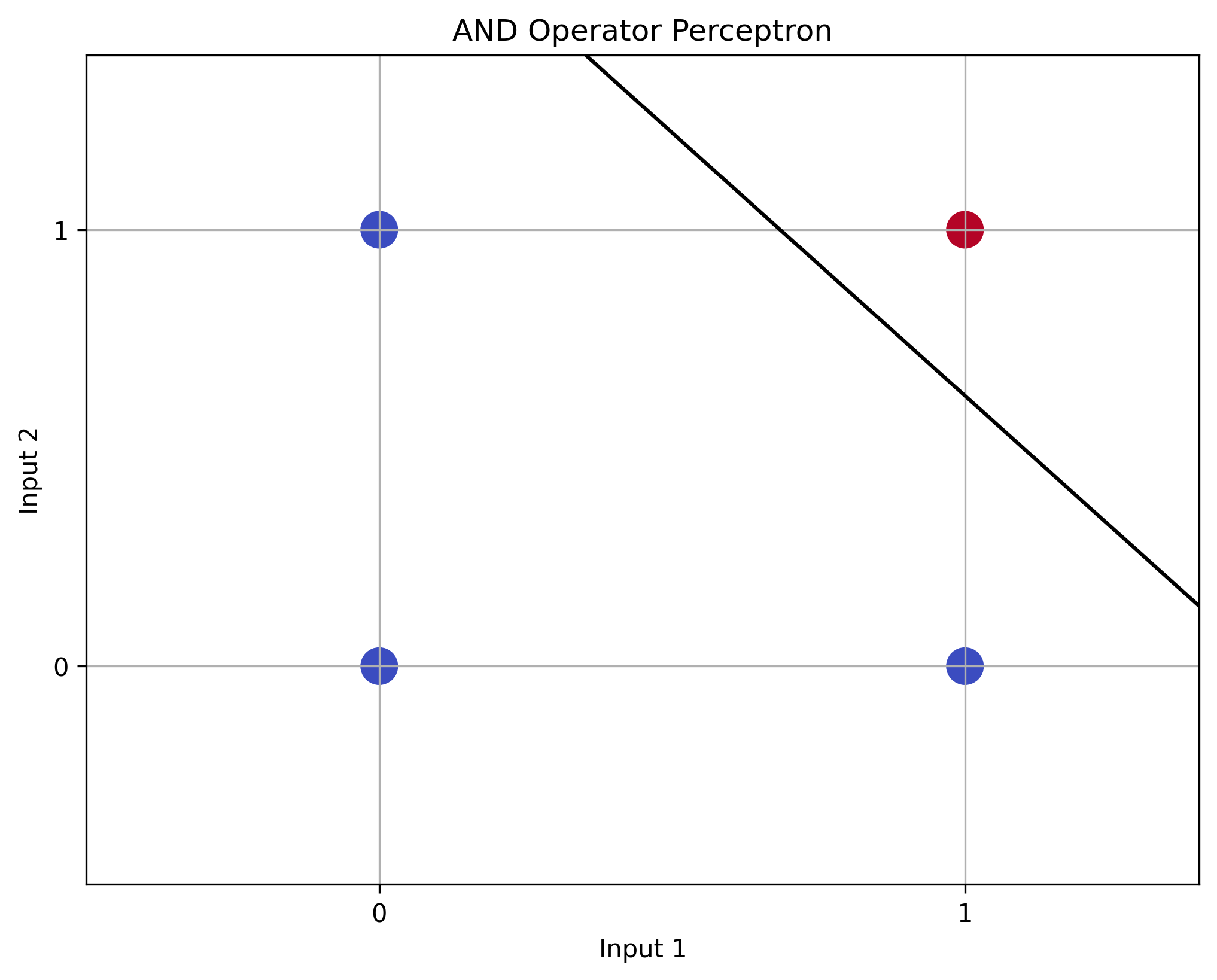

AND Operator Results

Task C: Multi-layer Perceptron (XOR)

# Define XOR gate inputs and outputs
inputs = np.array([[0, 0], [0, 1], [1, 0], [1, 1]])
targets = np.array([[0], [1], [1], [0]])

# Initialize weights for hidden and output layers
weights_0 = np.random.randn(2, 3)
weights_1 = np.random.randn(3, 1)
bias_0 = np.random.randn(1, 3)
bias_1 = np.random.randn(1, 1)

# Training loop
for epoch in range(epochs):
    # Forward pass
    hidden = sigmoid(np.dot(inputs, weights_0) + bias_0)
    output = sigmoid(np.dot(hidden, weights_1) + bias_1)

    # Backward pass
    error = targets - output
    delta_1 = error * output * (1 - output)
    delta_0 = np.dot(delta_1, weights_1.T) * hidden * (1 - hidden)

    weights_1 += learning_rate * np.dot(hidden.T, delta_1)
    weights_0 += learning_rate * np.dot(inputs.T, delta_0)
    bias_1 += learning_rate * np.sum(delta_1, axis=0)
    bias_0 += learning_rate * np.sum(delta_0, axis=0)

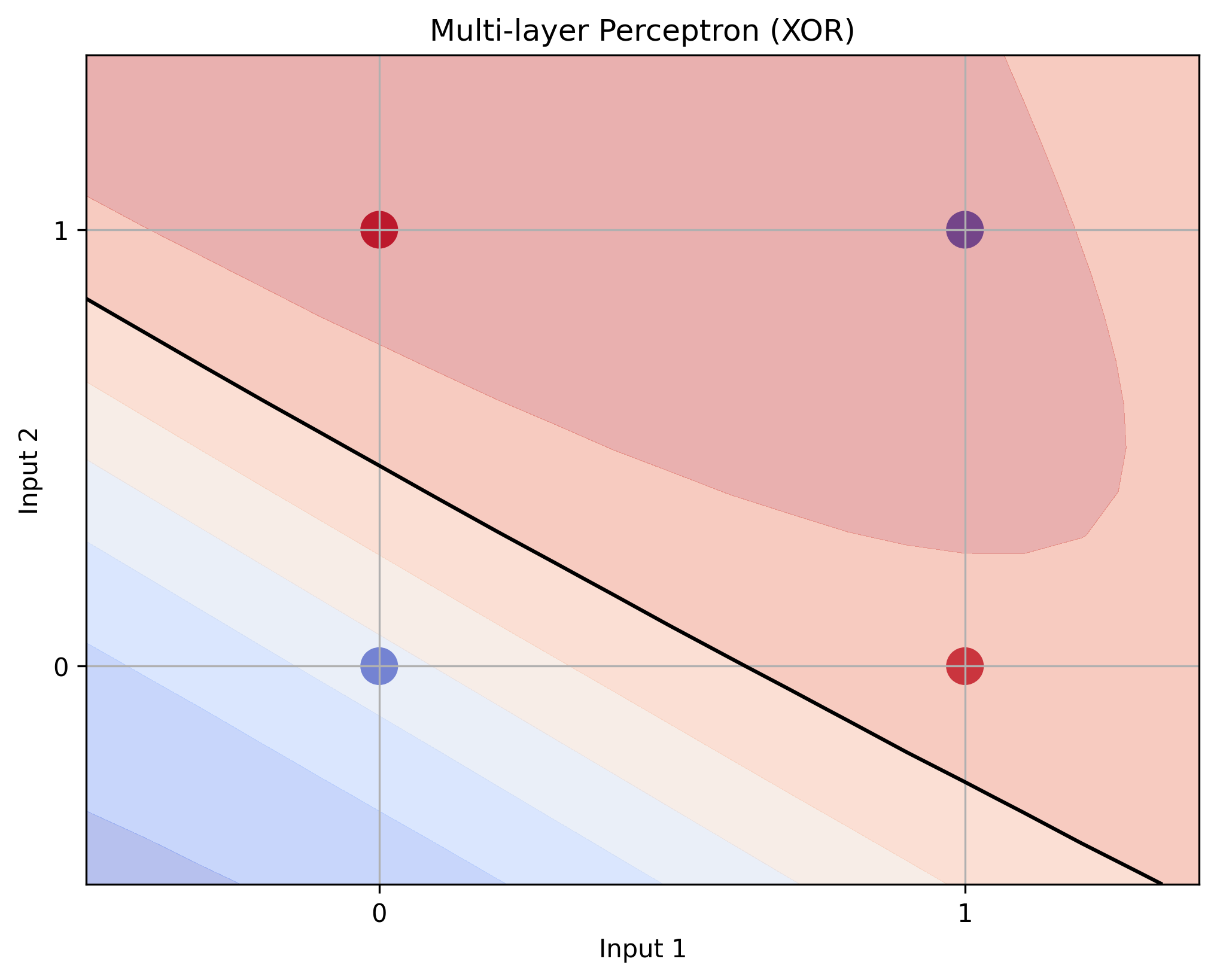

XOR Problem Results
